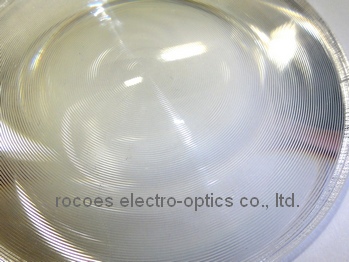

Plastic Fresnel Lens

PMMA fresnel lens, PC fresnel lens

Functions: Focus.

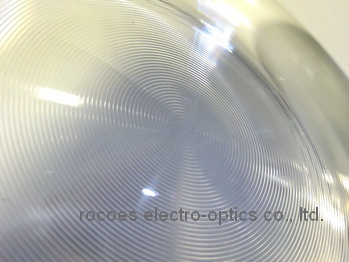

Fresnel lenses have equidistant ridges on one side of the lens. Through these ridges, the light can be focused, with a short focal length, high luminous flux, light weight, low material usage and easy construction. The advantages of concentrating devices.

Production capacity

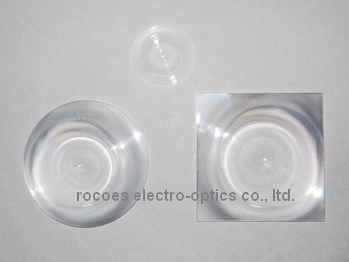

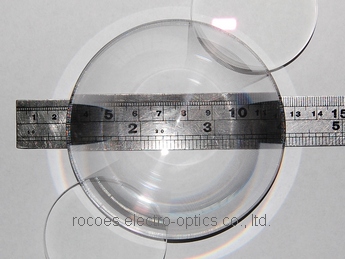

 Dimensions      50 ~ 300 mm (can be square or round as required)

 Focus       60, 70, 80, 90 ~ 300 mm (every 10mm level)

 Thickness       2 mm

 Materials       PMMA

Standard Products

 Dimension(Diameter)      Focus(mm)

 150              80

 150              100

 150              120

 150              130

 150              140

 150              150

 150              160

 150              170

 180              180

 180              190

 180              200

 180              210

 180              220

 180              235

 230              240

 230              260

 230              270

 250              290

 250              390

 250              400

 250              570

 250              585

 250              650

 250              680

 280              365

 280              370
