  • HOME > Glass >
    Chemically tempered glass

    Glass,optical glass

    Glass

    Also known as Tempered glass by chemical

    Functions: Glass with good pressure and optical and flatness

    Applications: Instrument window, lens window, various touch screen panels

    #CSG0.4  #CSG0.55  #CSG0.7
    #CSG1.1  #CSG1.8  #Information and Notes
    0.4mmGlass,soda glass

    ITEM NO:CSDG0.4

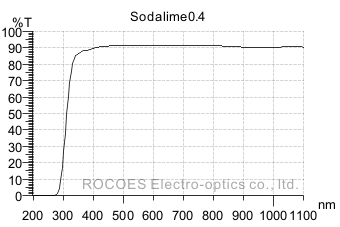

    Spectral Characteristics

    Tave>90% @ 400-700nm

    Physical Characteristics

    Thickness: 0.4mm

    Square: 3x3 - 300x400mm

    Round: Dia3 - 300mm

    Resistant Temperature

    150℃

      0.5mmGlass,soda glass

    ITEM NO:CSDG0.5

    Spectral Characteristics

    Tave>90% @ 400-700nm

    Physical Characteristics

    Thickness: 0.55mm

    Square: 3x3 - 300x400mm

    Round: Dia3 - 300mm

    Resistant Temperature

    150℃

      0.7mmGlass,soda glass

    ITEM NO:CSDG0.7

    Spectral Characteristics

    Tave>90% @ 400-700nm

    Physical Characteristics

    Thickness: 0.7mm

    Square: 3x3 - 300x400mm

    Round: Dia3 - 300mm

    Resistant Temperature

    150℃

      1.1mmGlass,soda glass

    ITEM NO:CSDG1.1

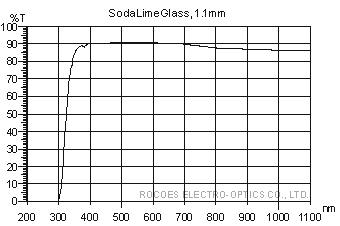

    Spectral Characteristics

    Tave>90% @ 400-700nm

    Physical Characteristics

    Thickness: 1.1mm

    Square: 3x3 - 300x400mm

    Round: Dia3 - 300mm

    Resistant Temperature

    150℃

      0.7mmGlass,soda glass

    ITEM NO:CSDG1.8

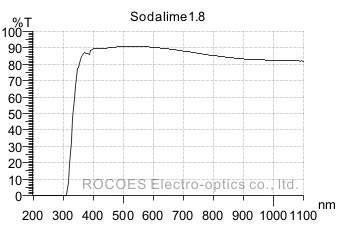

    Spectral Characteristics

    Tave>90% @ 400-700nm

    Physical Characteristics

    Thickness: 1.8mm

    Square: 3x3 - 300x400mm

    Round: Dia3 - 300mm

    Resistant Temperature

    150℃


    Information and Notes

    1. Chemical Tempered glass has better pressure resistance than ordinary glass, and is suitable for use as a panel or protective sheet for touch products such as mobile phones and tablets.

    2. Special shapes or thicknesses can be cut or machined according to customer requirements.

    3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.

    4. Need higher penetration? Please refer to anti-reflection processing.

    5. Need to increase the impact resistance? Please refer to Tempered glass.

    6. The highest safe temperature refers to the temperature at which the glass substrate itself can withstand without breaking under uneven heating or temperature difference. It can be higher in the case of uniform heating or small (slow) temperature difference change.

    7. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
